Motherboard

MSI B550 MPG GAMING PLUS DDR4 ATX

Name: MSI B550 MPG GAMING PLUS DDR4 ATX
Brand: MSI
SKU: w16rrp3ik

Best Price

$139.99

via

	—	$139.99
Loading... Loading
	FREE s/h	$139.99
Loading... Loading
	FREE s/h	$139.99
Loading... Loading
	FREE s/h	$139.99
Loading... Loading
	FREE s/h	$139.99
Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

* Amazon pricing is not included in price history graphs.

Product Information

Manufacturer

MSI

Series

B550

Variant

B550 GAMING PLUS

Release Year

Unknown

Manufacturer Color

Unknown

UPC

824142218600

EAN

0824142218600 4719072731885

Part Numbers

MPG B550 GAMING PLUS 7C56-003R B550GPLUS 911-7C56-001 MSI MPG B550 Gaming Plus

BuildCores ID

w16rrp3ik

General Specifications

Socket

AM4

Form Factor

ATX

Chipset

AMD B550

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

BLACK GREY RGB

PCIe Slots

1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 1 x PCIe 3.0 x4

M.2 Slots

M 2242/ 2260/ 2280/ 22110 PCIe 4.0/ 3.0 x4 M 2242/ 2260/ 2280 PCIe 3.0x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek RTL8111H 1 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek ALC897

Audio Channels

7.1

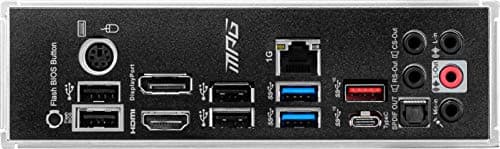

Back Panel Ports

1 x Flash BIOS Button 1 x PS/2 keyboard/mouse combo port 2 x USB 3.2 Gen 1 5Gbps Type-A ports 1 x DisplayPort 1 x HDMI port 4 x USB 2.0 Type-A ports 1 x USB 3.2 Gen 2 10Gbps Type-A port 1 x USB 3.2 Gen 2 10Gbps Type-C port 1 x LAN (RJ45) port 5 x Audio jacks 1 x Optical S/PDIF Out connector
