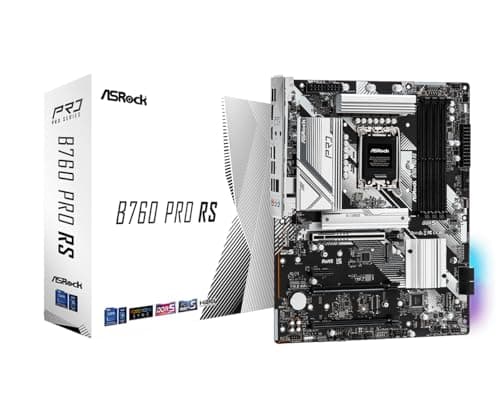

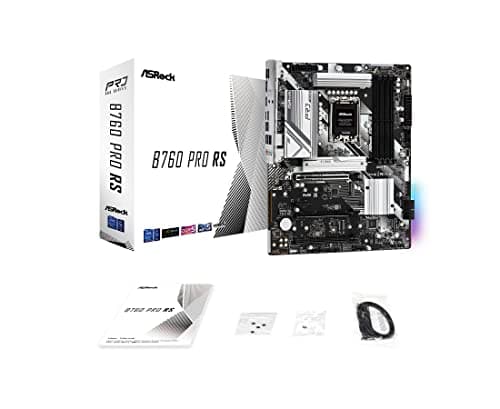

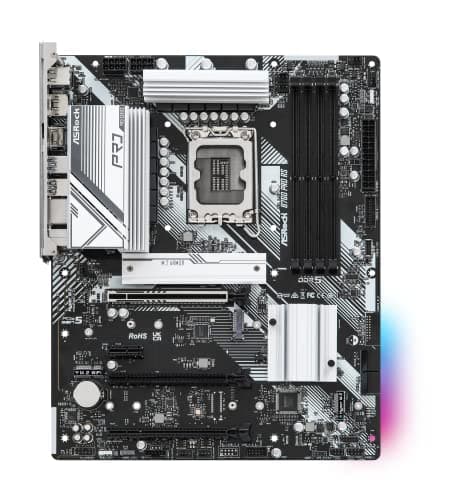

ASRock B760 Pro RS LGA1700 DDR5 ATX image

ASRock B760 Pro RS LGA1700 DDR5 ATX main image

Product Information

Manufacturer

ASRock

Series

B760

Variant

Pro RS

Release Year

2023

Manufacturer Color

Black

UPC

None

EAN

4710483942044

Part Numbers

B760 Pro RS 90-MXBKS0-A0UAYZ B760 PRO RS

BuildCores ID

pnlc0mzdq

General Specifications

Socket

LGA 1700

Form Factor

ATX

Chipset

Intel B760

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

GREY BLACK

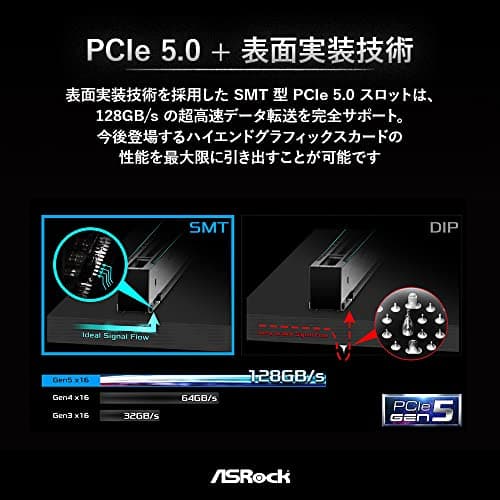

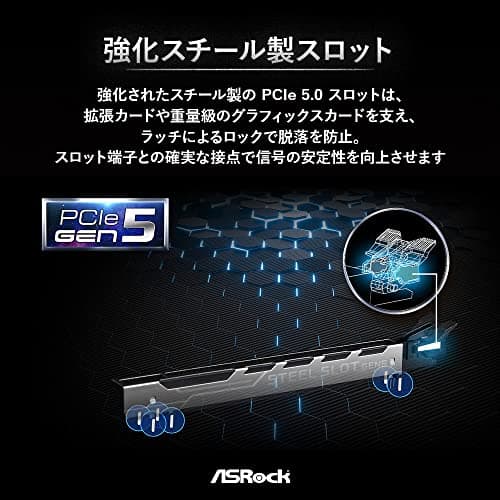

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x PCIe 3.0 x1

M.2 Slots

M 2260/2280 PCIe 4.0 x4 M 2260/2280 PCIe 4.0 x2 M 2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

Unknown

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek ALC897

Audio Channels

7.1

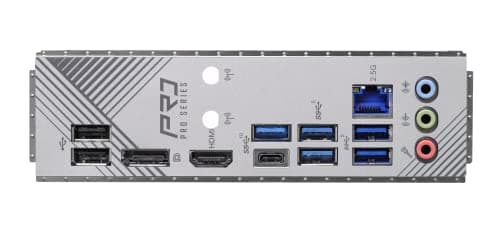

Back Panel Ports

1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 4 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone

See an issue?Report an issue on OpenDB

Motherboard

ASRock B760 Pro RS LGA1700 DDR5 ATX

Name: ASRock B760 Pro RS LGA1700 DDR5 ATX
Brand: ASRock
SKU: pnlc0mzdq

Best Price

$109.99

via

	—	$109.99
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$109.99 via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$109.99 via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links
