Motherboard

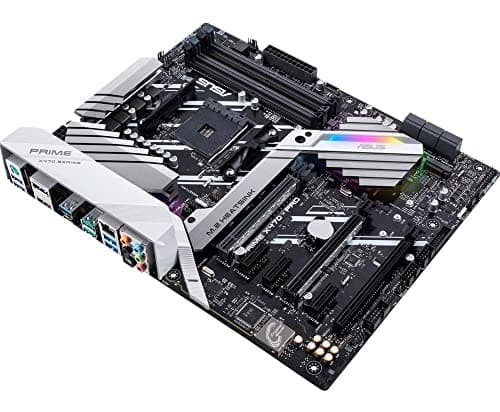

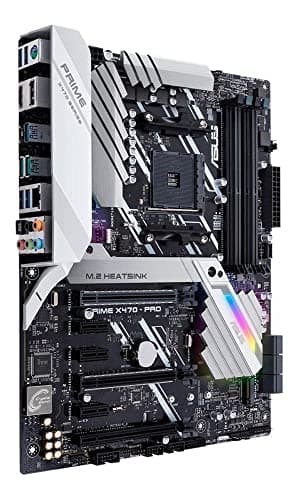

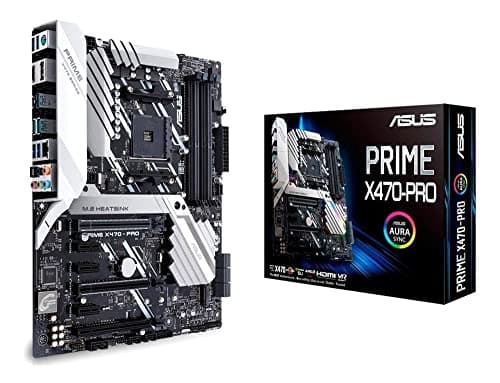

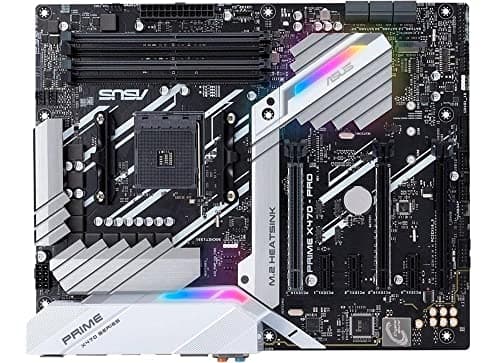

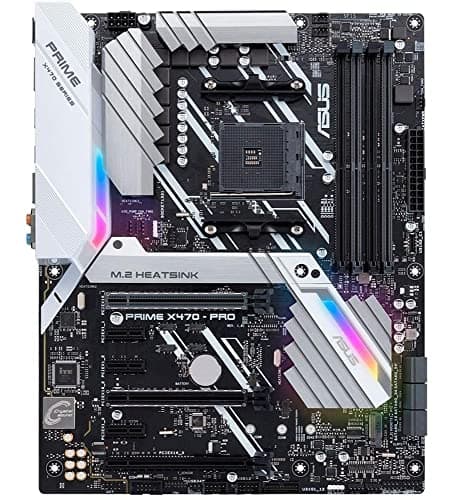

ASUS Prime X470-PRO

Loading...
Loading
Loading...
Loading

N/A

Loading...
Loading
FREE s/h

N/A

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading...
Loading
Loading...
Loading
Loading...
Loading
* Amazon pricing is not included in price history graphs.

Additional Features

Powered by AMD Ryzen 2 AM4 and 7th generation Athlon processors to maximize connectivity and speed with NVMe M.2, front panel USB 3.1 Gen2 and Gigabit LAN

5 Way Optimization with auto tuning and Fan Xpert 4 delivers advanced fan controls with an integrated AIO pump header for dynamic cooling. Operating System Windows 10 64 bit, Windows 7 64 bit

Patent pending Safe Slot features an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs

Aura Sync RGB lighting features a nearly endless spectrum of colors with the ability to synchronize effects across an ever expanding ecosystem of AURA Sync enabled products

Industry leading 8 channel HD audio with Realtek S1220 A codec delivers a warm, full sound

Turbo App, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.

Product Information
Manufacturer
ASUS
Series
Prime
Variant
X470-PRO
Release Year
2018
Manufacturer Color
Unknown
UPC
889349935101
EAN
0889349935101
Part Numbers
Prime X470-Pro
BuildCores ID
eew0uas19
General Specifications
Socket
AM4
Form Factor
ATX
Chipset
AMD X470
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
2 x PCIe 3.0 x16 1 x PCIe 2.0 x16 3 x PCIe 2.0 x1
M.2 Slots
M 2242/2260/2280 PCIe3.0 x4/SATA
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel i211AT 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
5
USB 3.2 Gen 2
2
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
RealtekS1220A high definition audio CODEC featuring Crystal Sound 3
Audio Channels
7.1

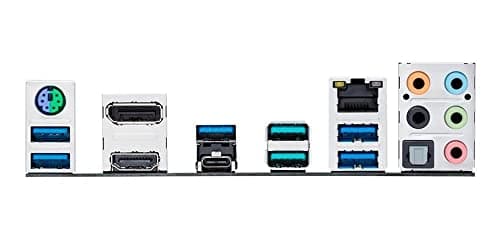

Back Panel Ports
PS/2 keyboard/mouse DisplayPort HDMI LAN (RJ45) USB 3.1 Gen 2 (Type-A) USB 3.1 Gen 1 USB Type-C USB 3.1 Gen 1 Optical S/PDIF out Audio jack
