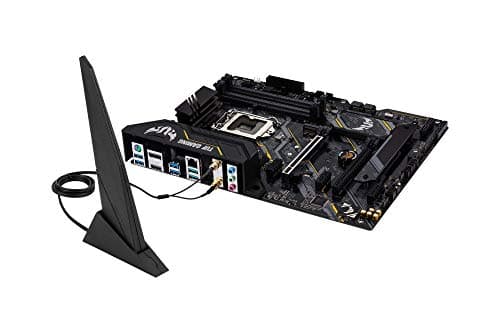

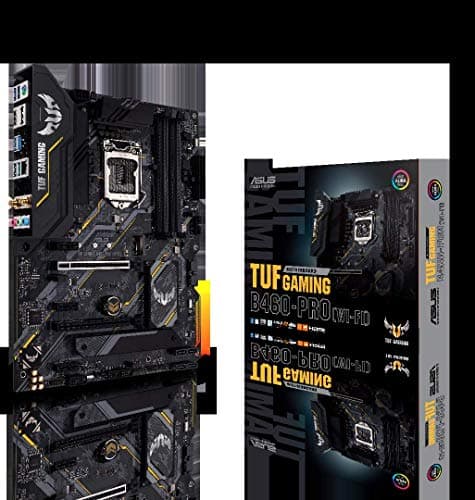

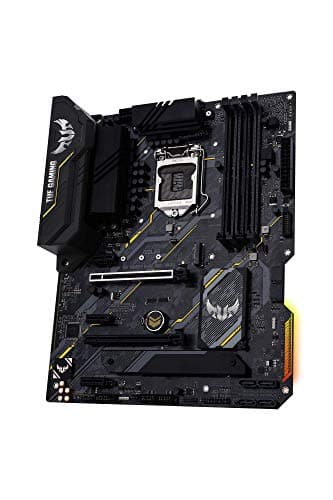

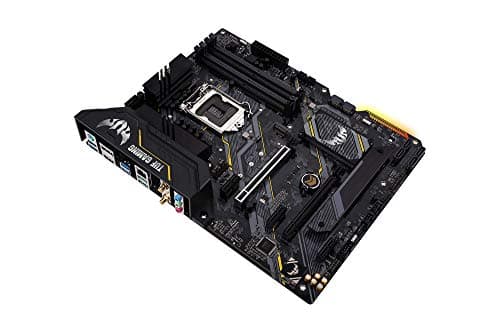

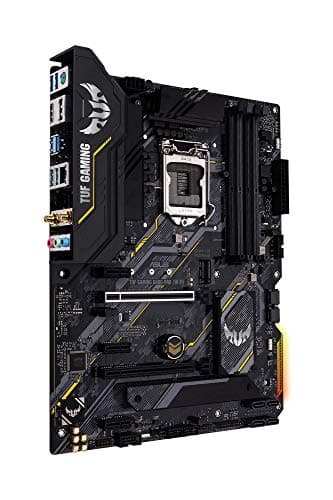

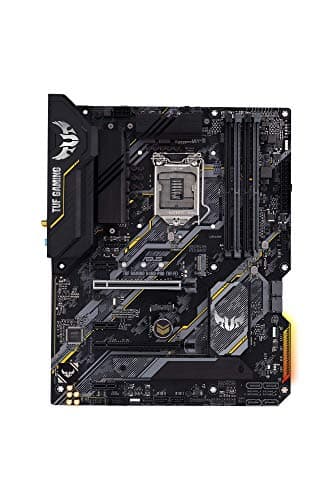

ASUS TUF GAMING B460-PRO Wi-Fi LGA 1200 ATX Motherboard

Newegg
Unavailable

$207.52

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

SpecificationValue
Socket
LGA1200
Form Factor
ATX
Chipset
Intel B460
Manufacturer
ASUS
Series
TUF GAMING
Variant
B460-PRO (WI-FI)
Release Year
2020
Memory Type
DDR4
Memory Slots
4
Max Memory
128 GB
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
PCIe Slots
1x PCIe 3.0 x16 1x PCIe 3.0 x4 3x PCIe 3.0 x1
M.2 Slots
2242/2260/2280 Key-M PCIe 3.0 x4 SATA 2242/2260/2280/22110 Key-M PCIE 3.0 x4
2.5G LAN
N/A
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
0
USB 4.0
0
ECC Support
false
RAID Support
true
BIOS Flashback
false
Clear CMOS Button
true
Audio Chipset
Realtek ALC S1200A
Audio Channels
8

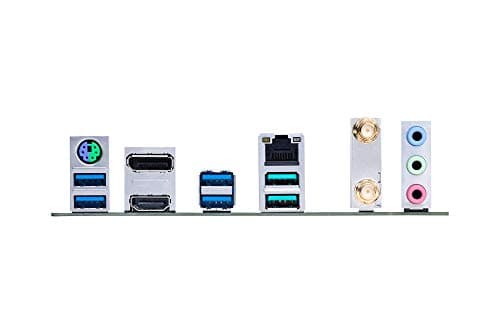

Back Panel Ports
1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 Type-A 3 x Audio jack(s) 1 x ASUS Wi-Fi Module
Additional Info
Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors
Comprehensive cooling: VRM heatsink, M. 2 heatsink, PCH heatsink
Made for online gaming: Intel WiFi 6 802. 11ax, Intel 1Gb Lan, TUF LANGuard and Turbo LAN technology
Aura Sync RGB Lighting: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable gen 2 RGB header
Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
Enhanced power solution: 8 power stages, military-grade TUF components, and Digi+ VRM for maximum durability

Additional Info:

Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors

Comprehensive cooling: VRM heatsink, M. 2 heatsink, PCH heatsink

Made for online gaming: Intel WiFi 6 802. 11ax, Intel 1Gb Lan, TUF LANGuard and Turbo LAN technology

Aura Sync RGB Lighting: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable gen 2 RGB header

Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in

Enhanced power solution: 8 power stages, military-grade TUF components, and Digi+ VRM for maximum durability
