Specification	Value
Socket	AM4
Form Factor	ATX
Chipset	AMD X570
Manufacturer	ASUS
Series	X570
Variant	N/A
Release Year	N/A
Memory Type	DDR4
Memory Slots	4
Max Memory	128 GB
SATA 6Gb/s	6
SATA 3Gb/s	0
U.2 Ports	0
PCIe Slots	2x PCIe 4.0 x16 3x PCIe 4.0 x1
M.2 Slots	2242-2260 Key-M PCIe 4.0 x4 2280 Key-M PCIe 4.0 x4 2242-2260 Key-M PCIe 4.0 x4 2280 Key-M PCIe 4.0 x4
2.5G LAN	N/A
USB 2.0	2
USB 3.2 Gen 1	2
USB 3.2 Gen 2	0
USB 3.2 Gen 2x2	0
USB 4.0	0
ECC Support	false
RAID Support	true
BIOS Flashback	false
Clear CMOS Button	false
Audio Chipset	Realtek
Audio Channels	7.1
Back Panel Ports	1 x 1 Gb/s (Realtek RTL8111H)

Motherboard

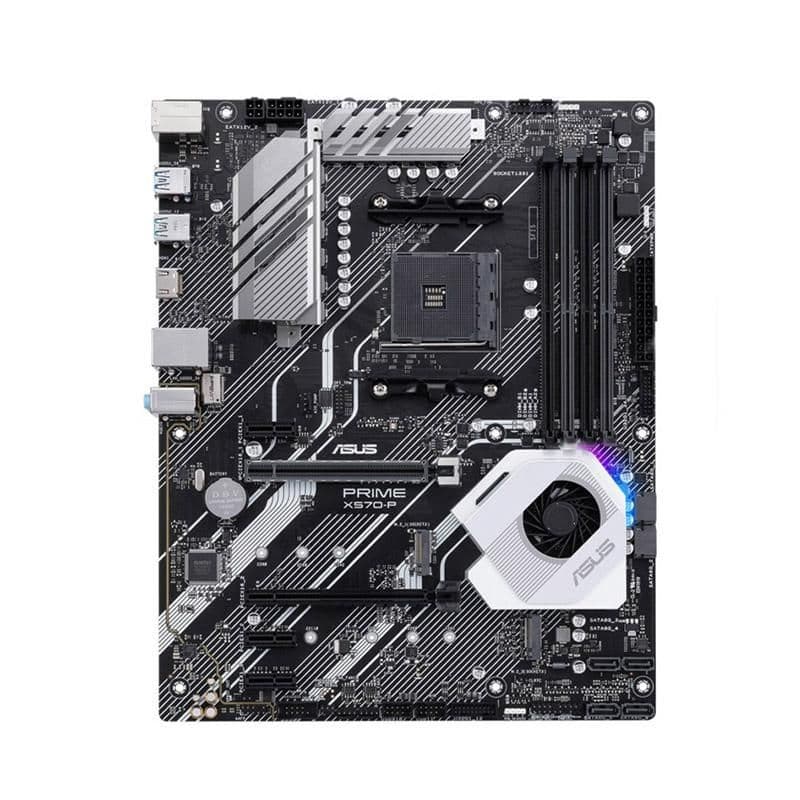

Asus X570 PRIME X570-P/CSM AM4 DDR4 ATX
