Motherboard

Loading...
Loading
Loading...
Loading

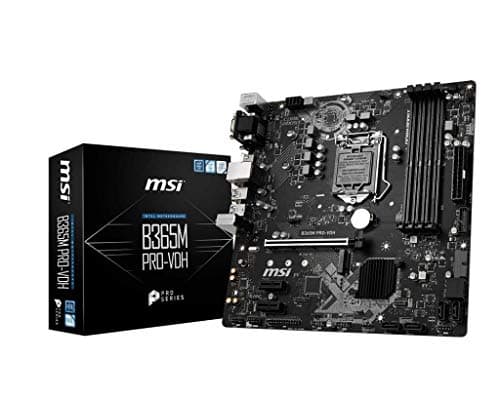

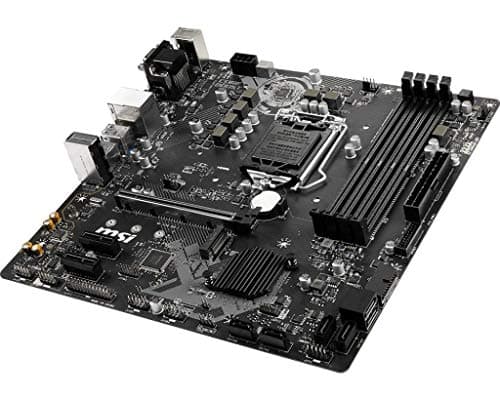

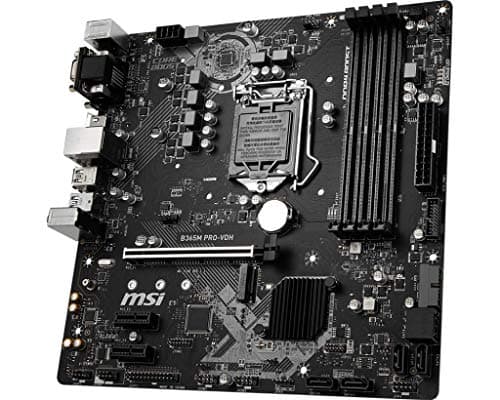

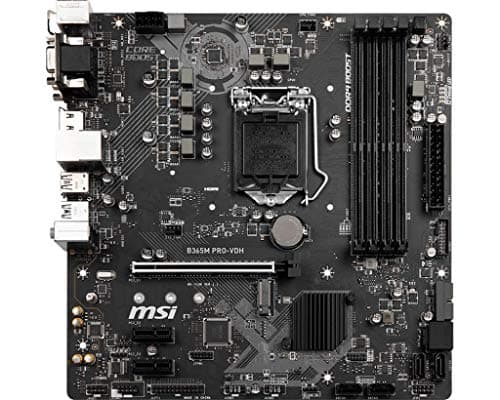

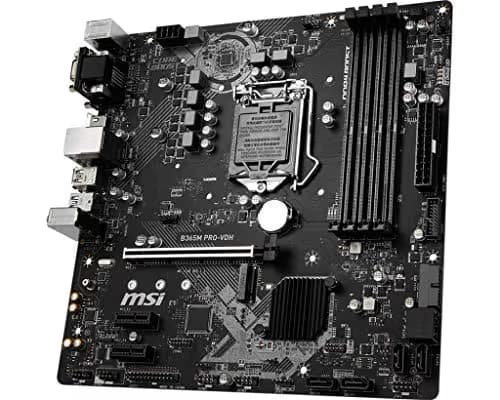

B365M PRO-VDH

Walmart
Out of stock

$99.99

Loading...
Loading
Newegg
Unavailable

$132.49

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

SpecificationValue
Socket
LGA1151
Form Factor
Micro ATX
Chipset
Intel B365
Manufacturer
MSI
Series
PRO
Variant
B365M PRO-VDH
Release Year
2019
Memory Type
DDR4
Memory Slots
4
Max Memory
64 GB
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
PCIe Slots
1x PCIe 3.0 x16 2x PCIe 3.0 x1
M.2 Slots
2242/ 2260 /2280/ 22110 Key-M PCIe 3.0 x4 and SATA 6Gb/s
2.5G LAN
N/A
USB 2.0
4
USB 3.2 Gen 1
4
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
0
USB 4.0
0
ECC Support
false
RAID Support
true
BIOS Flashback
false
Clear CMOS Button
true
Audio Chipset
Realtek ALC892 Codec
Audio Channels
7.1-Channel

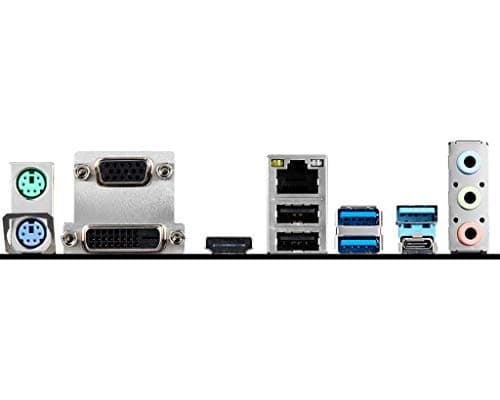

Back Panel Ports
Mouse Port VGA Port HDMI™ Port LAN Port USB 3.1 Gen1 USB 3.1 Gen1 Type A Keyboard Port DVI-D Port USB 2.0 Ports USB 3.1 Gen1 Type C HD Audio Connectors
Additional Info
Supports 9th/8th Gen Intel Core/Pentium gold/Celeron Processors for LGA 1151 socket
Supports DDR4 Memory, up to 2666 MHz
Turbo M. 2: running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Core boost: with premium layout and fully digital power design to support more Cores and provide better performance
Audio Boost: reward your ears with studio grade sound quality

Additional Info:

Supports 9th/8th Gen Intel Core/Pentium gold/Celeron Processors for LGA 1151 socket

Supports DDR4 Memory, up to 2666 MHz

Turbo M. 2: running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

Core boost: with premium layout and fully digital power design to support more Cores and provide better performance

Audio Boost: reward your ears with studio grade sound quality
